Robo feed Serie A, part of the Industry 4.0 Ready range, is Assistec’s plug-and-play solution featuring an anthropomorphic robot for the tending of machine tools.
It is available both with a fully extendable, self-supporting drawer magazine and with double-bay drawers integrated into the structure.
Its compact size, combined with the inclusion of a laser scanner that eliminates the need for physical safety barriers, means it can be installed even in workshops with limited space; this also ensures full access to the machine tool for retooling or manual operations.

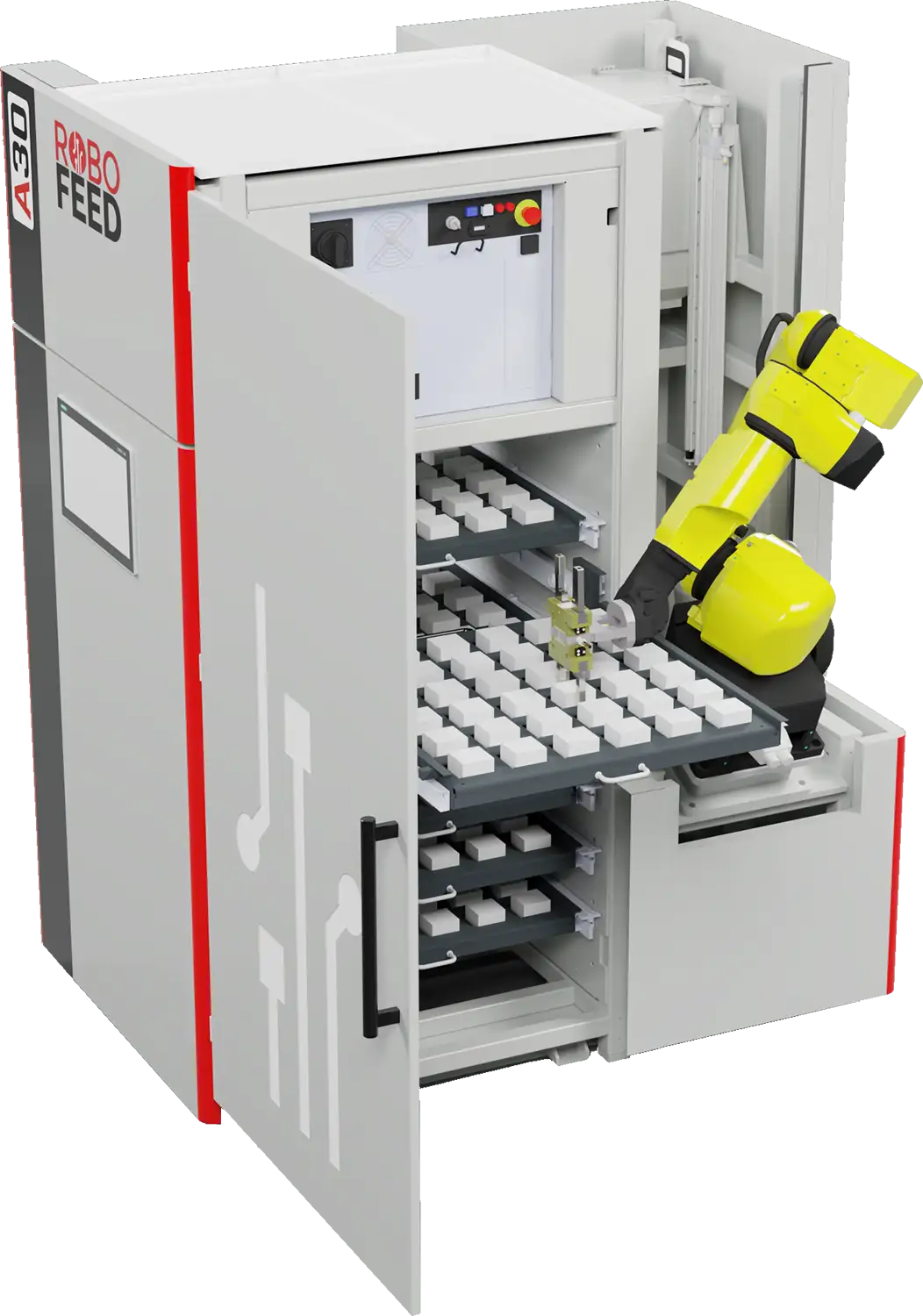

The robotic cell features a tower-type magazine with nine drawers that can be accessed from both the robot side and the operator side, onto which raw parts are loaded and machined parts unloaded without any interruption to the machining cycle. Each drawer, which the operator can access safely to remove parts, measures 755 x 805 mm, is 145 mm high and has a maximum load capacity of 150 kg: these dimensions make the Robo Feed magazine one of the most spacious among the compact solutions available on the market.
The Assis-tec research and development department has developed an effective fully automated solution for the enslavement of machine tools. Fanuc’s efficiency and reliability form the basis of our Robo Feed machines.
The robot has a minimal footprint of 1.3 square metres. Through the combination of multiple robots in charge of the different stages of the production process,it is possible to improve the degree of automation of the entire production line.
The Robo Feed Serie A is the ideal solution even for small to medium-sized production runs, thanks to the quick changeover of the trays and the simplified software used to manage the pick-up points in the warehouse.
Furthermore, the operator can easily check the status of production cycles thanks to the indicator lights, and machine maintenance is made easier by the sliding side door.
As standard, the Robo feed A Series is equipped with a tray for storing a sample part for quality control, either at the operator’s request or at programmed intervals.
 |  |  | |
|---|---|---|---|
| Compatible robots | FANUC M10 iD/12 12 kg – 1441 mm | FANUC M20 iD/25 25 kg – 1831 mm | FANUC M20 iD/35 35 kg – 1831 mm |
| Storage system type | Drawer cabinet movable by pallet truck | ||
| Drawer type | Full-extension on robot side | ||
| Number of drawers* | Maximum 16 | ||
| Single drawer dimensions | 600x600 mm | ||
| Usable drawer height* | Variable according to the number of drawers | ||
| Storage capacity* | Variable according to the number of drawers | ||
| Single drawer capacity* | 50 kg | ||
| Storage surface area | Variable according to the number of drawers | ||
| Total weight* | 1000 kg, drawer cabinet excluded | ||
| Dimensions (WxDxH) | 155x108x222 cm | ||
| Compatible robots | FANUC M10 iD/12 12 kg – 1441 mm |
| Storage system type | Drawer cabinet movable by pallet truck |
| Drawer type | Full-extension on robot side |
| Number of drawers* | Maximum 16 |
| Single drawer dimensions | 600x600 mm |
| Usable drawer height* | Variable according to the number of drawers |
| Storage capacity* | Variable according to the number of drawers |
| Single drawer capacity* | 50 kg |
| Storage surface area | Variable according to the number of drawers |
| Total weight* | 1000 kg, drawer cabinet excluded |
| Dimensions (WxDxH) | 155x108x222 cm |
| Compatible robots | FANUC M20 iD/25 25 kg – 1831 mm |
| Storage system type | Drawer cabinet movable by pallet truck |
| Drawer type | Full-extension on robot side |
| Number of drawers* | Maximum 16 |
| Single drawer dimensions | 600x600 mm |
| Usable drawer height* | Variable according to the number of drawers |
| Storage capacity* | Variable according to the number of drawers |
| Single drawer capacity* | 50 kg |
| Storage surface area | Variable according to the number of drawers |
| Total weight* | 1000 kg, drawer cabinet excluded |
| Dimensions (WxDxH) | 155x108x222 cm |
| Compatible robots | FANUC M20 iD/35 35 kg – 1831 mm |
| Storage system type | Drawer cabinet movable by pallet truck |
| Drawer type | Full-extension on robot side |
| Number of drawers* | Maximum 16 |
| Single drawer dimensions | 600x600 mm |
| Usable drawer height* | Variable according to the number of drawers |
| Storage capacity* | Variable according to the number of drawers |
| Single drawer capacity* | 50 kg |
| Storage surface area | Variable according to the number of drawers |
| Total weight* | 1000 kg, drawer cabinet excluded |
| Dimensions (WxDxH) | 155x108x222 cm |
 |  |  | ||||
|---|---|---|---|---|---|---|
| Compatible robots | FANUC M10 iD/12 with 12 kg wrist payload and 1441 mm reach | FANUC M20 iD/25 with 25 kg wrist payload and 1831 mm reach | FANUC M20 iD/35 with 35 kg wrist payload and 1831 mm reach | |||
| Storage system type | With integrated drawers | |||||
| Drawer type | Double-extension: robot side and operator side | |||||
| Number of drawers* | 5 | 7 | 5 | 7 | 5 | 7 |
| Usable drawer height* | 238 mm | 150 mm | 238 mm | 150 mm | 238 mm | 150 mm |
| Single drawer dimensions | 746x808 mm | 746x808 mm | 746x808 mm | |||
| Storage capacity* | 700 kg | 980 kg | 700 kg | 980 kg | 700 kg | 980 kg |
| Single drawer capacity* | 140 kg | 140 kg | 140 kg | |||
| Storage surface area | 3 sqm | 4.2 sqm | 3 sqm | 4.2 sqm | 3 sqm | 4.2 sqm |
| Total weight* | 1500 kg | 1500 kg | 1500 kg | |||
| Dimensions (WxDxH) | 1848x1164x2300 mm | 1848x1164x2300 mm | 1848x1164x2300 mm | |||
FANUC M10 iD/12 with 12 kg wrist payload and 1441 mm reach
| Feature | 5 drawers | 7 drawers |
|---|---|---|
| Storage system type | With integrated drawers | |
| Drawer type | Double-extension: robot side and operator side | |
| Number of drawers* | 5 | 7 |
| Usable drawer height* | 238 mm | 150 mm |
| Single drawer dimensions | 746x808 mm | |
| Storage capacity* | 700 kg | 980 kg |
| Single drawer capacity* | 140 kg | |
| Storage surface area | 3 sqm | 4.2 sqm |
| Total weight* | 1500 kg | |
| Dimensions (WxDxH) | 1848x1164x2300 mm | |
FANUC M20 iD/25 with 25 kg wrist payload and 1831 mm reach
| Feature | 5 drawers | 7 drawers |
|---|---|---|
| Storage system type | With integrated drawers | |
| Drawer type | Double-extension: robot side and operator side | |
| Number of drawers* | 5 | 7 |
| Usable drawer height* | 238 mm | 150 mm |
| Single drawer dimensions | 746x808 mm | |
| Storage capacity* | 700 kg | 980 kg |
| Single drawer capacity* | 140 kg | |
| Storage surface area | 3 sqm | 4.2 sqm |
| Total weight* | 1500 kg | |
| Dimensions (WxDxH) | 1848x1164x2300 mm | |
FANUC M20 iD/35 with 35 kg wrist payload and 1831 mm reach
| Feature | 5 drawers | 7 drawers |
|---|---|---|
| Storage system type | With integrated drawers | |
| Drawer type | Double-extension: robot side and operator side | |
| Number of drawers* | 5 | 7 |
| Usable drawer height* | 238 mm | 150 mm |
| Single drawer dimensions | 746x808 mm | |
| Storage capacity* | 700 kg | 980 kg |
| Single drawer capacity* | 140 kg | |
| Storage surface area | 3 sqm | 4.2 sqm |
| Total weight* | 1500 kg | |
| Dimensions (WxDxH) | 1848x1164x2300 mm | |
Invest in machine tool automation and find out how much it pays off, really!
Assistec and ROI-Calculator by FANUC help you calculate an accurate estimate of the return on investment for automated servicing robots.
Featuring FANUC M10 iD/12 robots with a payload of 12 kg and a reach of 1441 mm
Featuring FANUC M20 iD/25 robots with a payload of 25 kg and a reach of 1831 mm
Featuring FANUC M20 iD/35 robots with a payload of 35 kg and a reach of 1831 mm
Featuring Fanuc M10 ID/12 robots with a 12 kg payload and a reach of 1441 mm
Featuring Fanuc M20 ID/25 robots with a payload of 25 kg and a reach of 1831 mm
Featuring FANUC M20 iD/35 robots with a payload of 25 kg and a reach of 1831 mm
